The Typ 205A Mauschen (Little Mouse) was a prototype of the Pzkpfw VIII Maus. It featured a forward mounted turret and eaither a 15 cm or 10,5 cm gun. The design was starkly different to its predecessor, the Typ 205 Mauschen. The turret was moved forward and the mini turret mounted on top of the main turret with a 7,5 cm gun was removed, the new tank also received 4 tracks because of the increased weight.

Krupp started to design the brand new turret with the 15cm KwK L/31 and 7,5cm KwK L/24 in July 1942. Of the initial Typ 205 hull almost nothing was left either. The weight was increased to 150 tons and in terms of the engine, 900hp MB507 was envisaged. The suspension and running part was re-worked because of the problems with increased weight, the tank received four tracks. Only a month remained before it would become the rear-turret design.

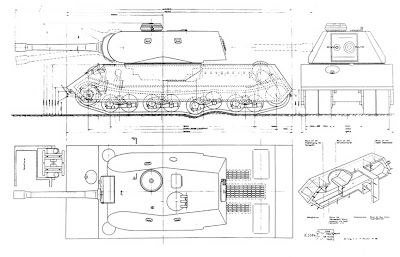

Typ205a




StatisticsEdit

Number Built: 0 (Design only)

Hull Armor:

  • Front: 200 mm
  • Sides: 160 mm
  • Rear:  135 mm
  • Top: 50 mm
  • Bottom: 50 mm

Turret Armor:

  • Front: 250 mm
  • Mantlet: 240 mm
  • Sides: 160 mm
  • Rear: 150 mm
  • Top: 80

Weight: About 150 tons

Suspension Type: ?

Engine: 900hp MB507

Top speed: Around 20 km/h

Primary Weapon: 15cm KwK 44 L/31

Secondary Weapon: Bow mounted machine gun

Radio: ?

Crew: 6

Technical DataEdit

Length (Including Gun):

Hull Length:

Total Width:

Total Height:

Ground Clearance:

Track Width:

Ground Pressure:


Transmission:


Speed, Road:

Speed, Cross-Country:

Range, Road:

Range, Cross-Country:


Gradeability:

Side-Slope Performance:

Trench Crossing Ability:

Wall Climbing Ability:

Fording Depth:
