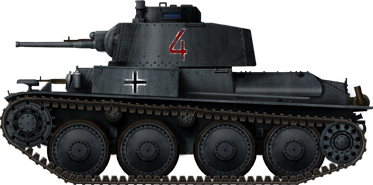

Panzer 38(t) Ausf.B




StatisticsEdit

Number Built: 110

Hull Armor:

  • Front: 12-25mm
  • Sides: 15mm
  • Rear: 10-15mm
  • Top: 8-10mm
  • Bottom: 8mm
  • Road Wheels: 6mm

Turret Armor:

  • Front: 25mm
  • Sides: 15mm
  • Rear: 15mm
  • Top: 8mm

Weight: 21,440 lbs (9,725 kgs) ~10.71 tons

Suspension Type:

Engine: Praga TNHPS/II (123.9hp, Gasoline, 7.750 liter, Water-Cooled, V6)

Top speed: 26.1 mph (42 kph)

Primary Weapon: 3,7cm KwK 38(t) with 90 rounds

Secondary Weapon: (2x) MG 37(t) with 2,700 rounds

Radio:

Crew: 4

Technical DataEdit

Length (Including Gun): 15ft 1.5in (4610mm)

Hull Length:

Total Width: 7ft 0.06in (2135mm)

Total Height: 7ft 4.65in (2252mm)

Ground Clearance: 1ft 3.75in (400mm)

Track Width: 11.54in (293mm)

Ground Pressure: 9.14 psi (0.063 MPa)


Transmission: Praga-Wilson CV (5+R)


Speed, Road: 26.1 mph (42 kph)

Speed, Cross-Country: 10.6 mph (17 kph)

Range, Road: 155.3 mi (250 km)

Range, Cross-Country: 62.1 mi (100 km)


Gradeability: 82% / 37°

Side-Slope Performance: unknown

Trench Crossing Ability: 74.8in (1.9m)

Wall Climbing Ability: 31.5in (0.8m / 800mm)

Fording Depth: 15.7in (0.4m / 400mm)
